Harken

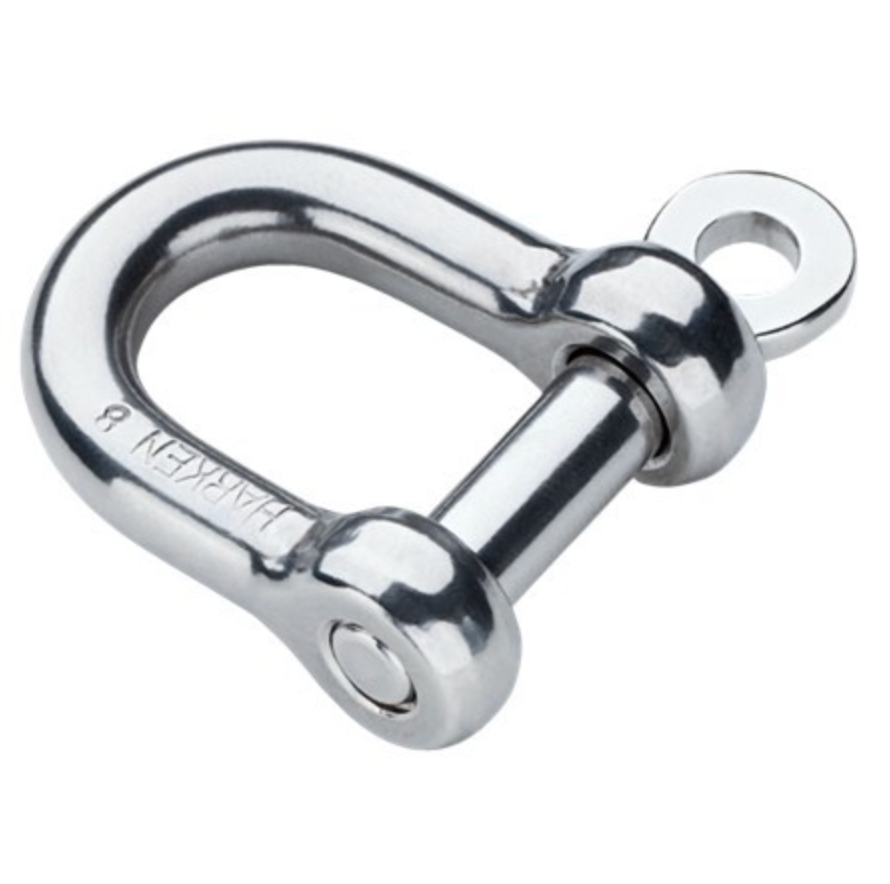

Harken 8mm "D" Shackle

$ 16.00 ~~$ 22.75~~

*ALL SALES FINAL*

Product #2115

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.

Weight (g)	59 g
Weight (oz)	2.08 oz
Maximum working load (kg)	1380 kg
Maximum working load (lb)	3040 lb
Breaking load (lb)	6080 lb
Breaking load (kg)	2760 kg
A (mm)	25 mm
A (in)	1 in
B (mm)	17 mm
B (in)	11/16 in
Shackle pin Ø (mm)	8 mm
Shackle pin Ø (in)	5/16 in
