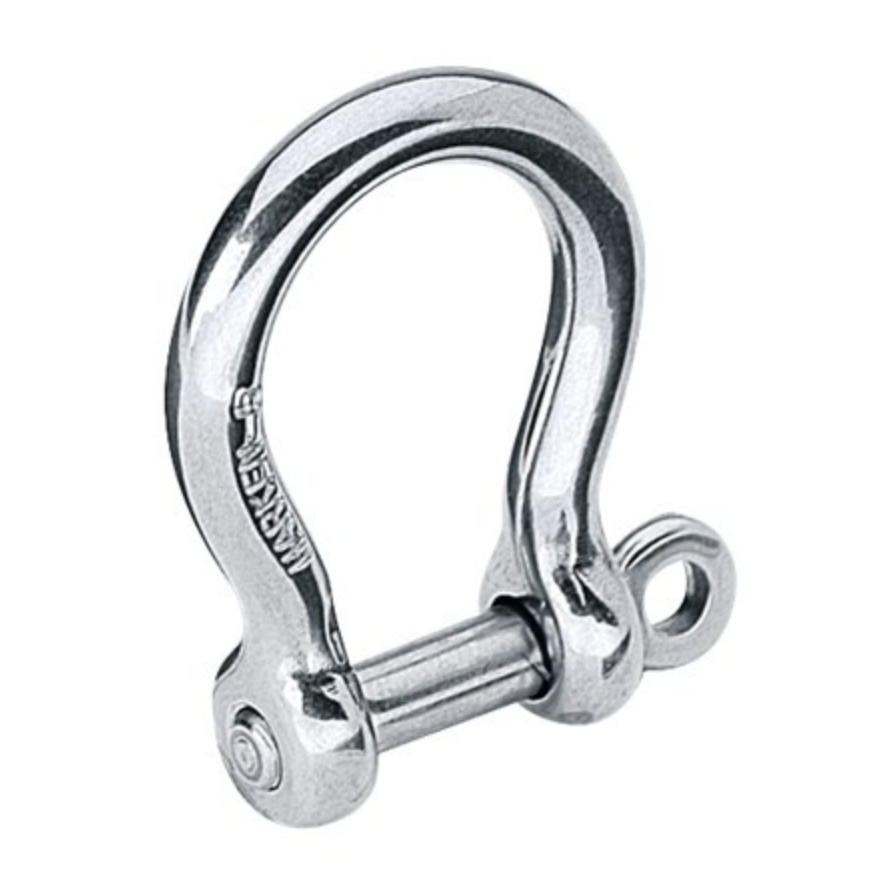

Harken 8mm Bow Shackle

$ 15.00 ~~$ 24.50~~

*ALL SALES FINAL*

Product #2117

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Weight (g)	70.5 g
Weight (oz)	2.48 oz
Maximum working load (kg)	1380 kg
Maximum working load (lb)	3040 lb
Breaking load (lb)	6080 lb
Breaking load (kg)	2760 kg
A (mm)	38 mm
A (in)	1 1/2 in
B (mm)	17 mm
B (in)	11/16 in
Shackle pin Ø (mm)	8 mm
Shackle pin Ø (in)	5/16 in
C (mm)	29 mm
C (in)	1 1/8 in
